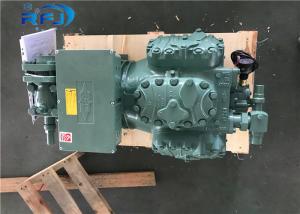

6FE-44Y 40HP Semi Hermetic Reciprocating Compressor

Model Number : 6FE-44Y/6F-40.2Y

Certification : ROHS, CE

Place of Origin : China

MOQ : 1 piece

Price : US$712-1000/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000Pieces/Year

Delivery Time : 5-7 Days

Packaging Details : Standard Wooden Package

Type : Refrigeration Compressor

Application : Refrigeration Parts

Power : 40HP

Refrigerant : R404 R407C R134A

Color : Green

Warranty : 1 Year

Power Source : AC POWER

Contact Now

1. Product parameter(Specification)

Model Displ. @1450r/min Cylinders Oil charge Weight Discharge line Suction line
m³/h dm³ Kg mm in mm in
2KES-05Y 4.06 2 1 43 12 1/2" 16 5/8"
2JES-07Y 5.21 2 1 43 12 1/2" 16 5/8"
2HES-1Y 6.51 2 1 44 12 1/2" 16 5/8"
2HES-2Y 6.51 2 1 45 12 1/2" 16 5/8"
2GES-2Y 7.58 2 1 45 12 1/2" 16 5/8"
2FES-2Y 9.54 2 1 45 12 1/2" 16 5/8"
2FES-3Y 9.54 2 1 47 12 1/2" 16 5/8"
4FES-3Y 18.1 4 2 82 16 5/8” 22 7/8”
4FES-5Y 18.1 4 2 86 16 5/8” 22 7/8”
4EES-4Y 22.7 4 2 84 16 5/8” 28 1 1/8”
4EES-6Y 22.7 4 2 86 16 5/8” 28 1 1/8”
4DES-5Y 26.8 4 2 86 22 7/8” 28 1 1/8”
4DES-7Y 26.8 4 2 89 22 7/8” 28 1 1/8”
4CES-6Y 32.5 4 2 91 22 7/8” 28 1 1/8”
4CES-9Y 32.5 4 2 91 22 7/8” 28 1 1/8”
4VES-6Y 34.7 4 2.6 129 22 7/8” 28 1 1/8”
4VES-7Y 34.7 4 2.6 129 22 7/8” 28 1 1/8”
4VES-10Y 34.7 4 2.6 139 22 7/8” 28 1 1/8”
4TES-8Y 41.3 4 2.6 134 28 1 1/8” 35 1 3/8”
4TES-9Y 41.3 4 2.6 134 28 1 1/8” 35 1 3/8”
4TES-12Y 41.3 4 2.6 414 28 1 1/8” 35 1 3/8”
4PES-10Y 48.5 4 2.6 139 28 1 1/8” 35 1 3/8”
4PES-12Y 48.5 4 2.6 139 28 1 1/8” 35 1 3/8”
4PES-15Y 48.5 4 2.6 147 28 1 1/8” 42 1 5/8”
4NES-12Y 56.2 4 2.6 141 28 1 1/8” 35 1 3/8”
4NES-14Y 56.2 4 2.6 141 28 1 1/8” 35 1 3/8”
6JE-22Y 96.3 6 4.75 213 35 1 3/8” 54 2 1/8”
6JE-25Y 96.3 6 4.75 228 35 1 3/8” 54 2 1/8”
6JE-33Y 96.3 6 4.75 231 35 1 3/8” 54 2 1/8”
6HE-25Y 110.5 6 4.75 224 35 1 3/8” 54 2 1/8”
6HE-28Y 110.5 6 4.75 228 35 1 3/8” 54 2 1/8”
6HE-35Y 110.5 6 4.75 236 35 1 3/8” 54 2 1/8”
6GE-30Y 126.8 6 4.75 228 35 1 3/8” 54 2 1/8”
6GE-34Y 126.8 6 4.75 228 35 1 3/8” 54 2 1/8”
6GE-40Y 126.8 6 4.75 238 35 1 3/8” 54 2 1/8”
6FE-40Y 151.6 6 4.75 238 42 1 5/8” 54 2 1/8”
6FE-44Y 151.6 6 4.75 241 42 1 5/8” 54 2 1/8”
6FE-50Y 151.6 6 4.75 241 42 1 5/8” 54 2 1/8”

3.Production details

SI IP
Displacement(1450 RPM 50 HZ) 151.6 m³/h 5353.7 CFH
Displacement(1750 RPM 60 HZ) 183.0 m³/h 6462.6 CFH
No.of cylinder * bore * stroke 6*82mm*55mm 6*3.23nch*2.17Inch
Weight 239 kg 527 lb
Max,pressure(LP/HP) 19/32 bar 275/464 psi
Connection suction line 54mm-2 1/8” 54mm-2 1/8”
Connection discharge line 42mm-1 5/8” 42mm-1 5/8”
Motor version 2 2
Starting current(Rotor locked) 219.0 A Y/362.0 A YY 350.0 A
Motor voltage(more on request) 380-420V PW-3-50 HZ 440-480V Y-3-60 HZ UL
Max operating current 83.2 A 83.2 A

Product Description:
Supply excellent refrigeration compressor, compressor price list 6FE-44Y
Brand
Model no. 6FE-44Y
Motor Size( HP) 44
Motor version 1
Displacement Type(m 3/h) 151.6
oil charge (dm3) 4.75
Voltage 380-420V/3PH/50Hz or 440-480V/3PH/60Hz
No of cylinders 6
Refregrant R134, R410A
Certification VDE, TUV, UL and CE
weight(kg) 239
Place Of Original Germany
packing wooden case
